This workshop will show you how to:

Final result

To complete this workshop you will need:

Language used:

Additional resources:

This workshop will show you how to setup a virtual reality environment using the Unity XR interaction toolkit; how to interact with the virtual objects in the scene; how to move around the environment using a teleportation system; how to develop a custom script to interact with a MQTT Broker.

URP Scene and the XR Integration Toolkit

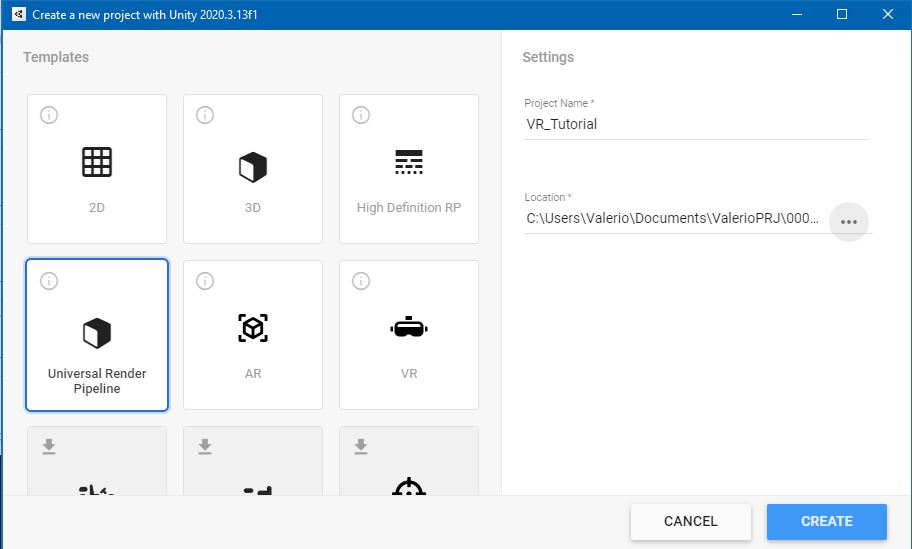

Create a new Universal Render Pipeline (URP) Unity project using UnityHub.

Create a new Unity Project

As the Oculus Quest 2 is based on Android, we need to change the target platform from the build settings. From File -> Build Settings select Android and press Switch Platform.

Install the XR Integration Toolkit from the Package Manager window, and import the Default Input Actions from the Sample menu. If prompted, enable the new input system.

Oculus Integration installation

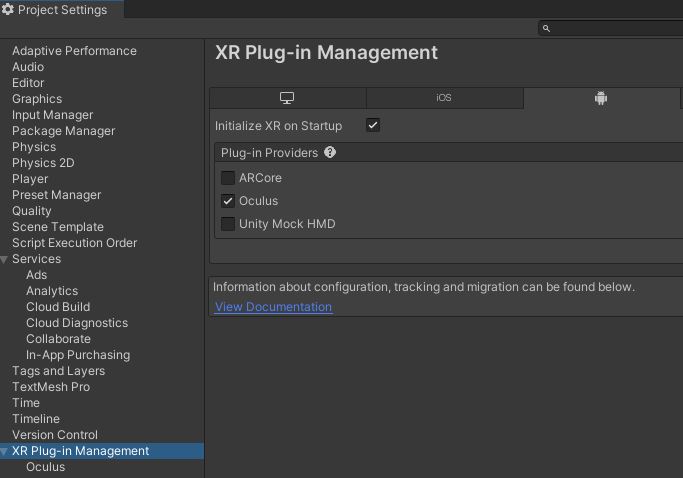

Once the plug-in is installed and the samples imported, from Project Settings select XR Plug-in Management, install the plug-in if it is not, and enable the Oculus Plug-in Provider.

Enable VR support

In Project Settings -> Player provide the following information:

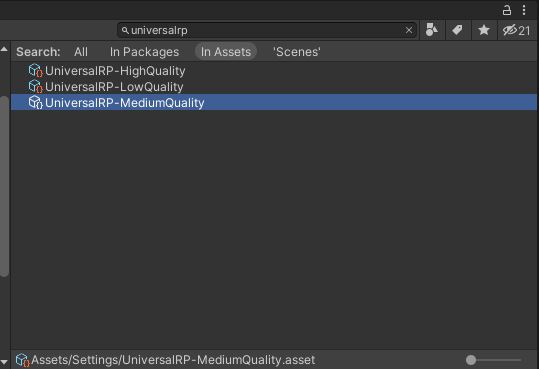

Minor changes need to be done to the quality settings as well. When the URP is used, some quality settings are bypassed by a Universal Render Pipeline Asset. It is possible to create a new Universal Render Pipeline Asset, or modify the UniversalRP-MediumQuality (the default used by Android).

UPR Settings

Select the asset and, from the Inspector, change the Anti Aliasing MSAA from Disable to 4x. From this window is possible to improve the quality of the shadows by changing the Shadows Max Distance to a lower value.

A virtual place

Create a new Empty scene and add:

Create a new GameObject XR -> XR Rig(Action-Based). This GameObject is the digital representation of the Oculus Headset and its controllers in the virtual scene.
Change the Tracking Origin Mode to Floor. This parameter is used to set the right height of the headset based on the Oculus calibration of the Guardian.

With the XR Rig in the scene it is already possible to build a VR experience and walk around the environment, however, the controllers are not yet in place and properly linked to the input control system.

On the XR Controller component of each hand, there is a field Model Prefab that is used to control the mesh of the VR controllers.
The Oculus Quest2 controllers, as the controllers of other VR HMD, are not provided with the XR Integration Plugin but they can be downloaded and manually installed. These are the steps to use the Quest2 controllers:

Add 3D models of the controllers

Set the actions

The controllers are in place, but they need to be linked to the interaction system. We are going to use the Samples imported from the XR Interaction Toolkit:

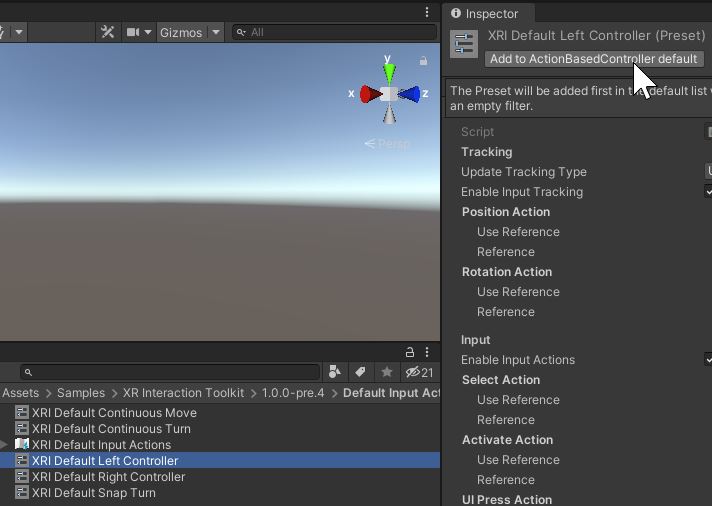

Enable the Actions

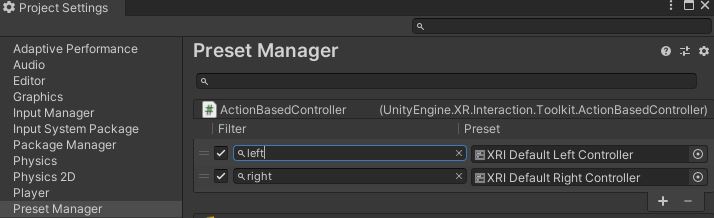

Set the filters for the actions

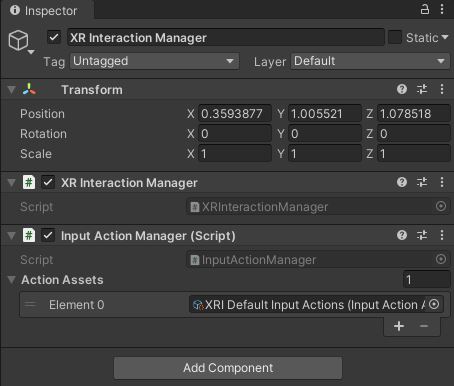

Input Action Manager

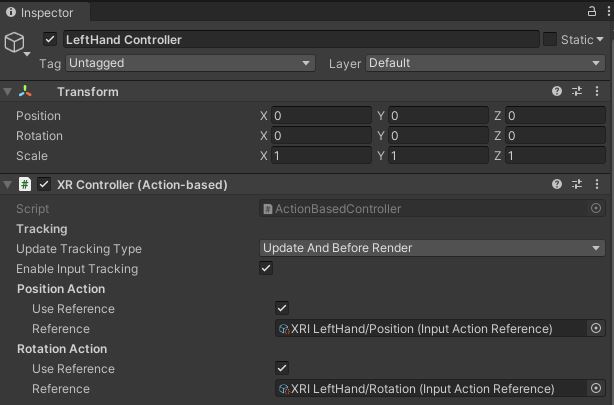

Position and Rotation Actions

Test the scene

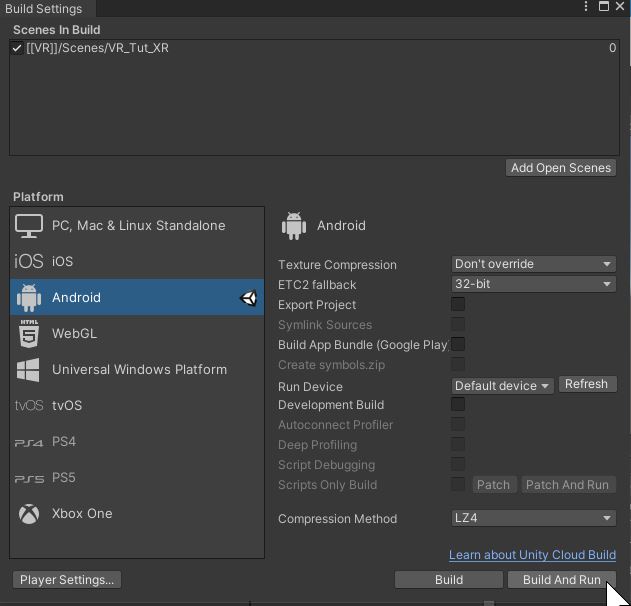

From File -> Build Settings and click on Add Open Scenes. With the Oculus Quest2 connected to your computer, press Build and Run, select the local destination folder for the APK.

Test the VR scene

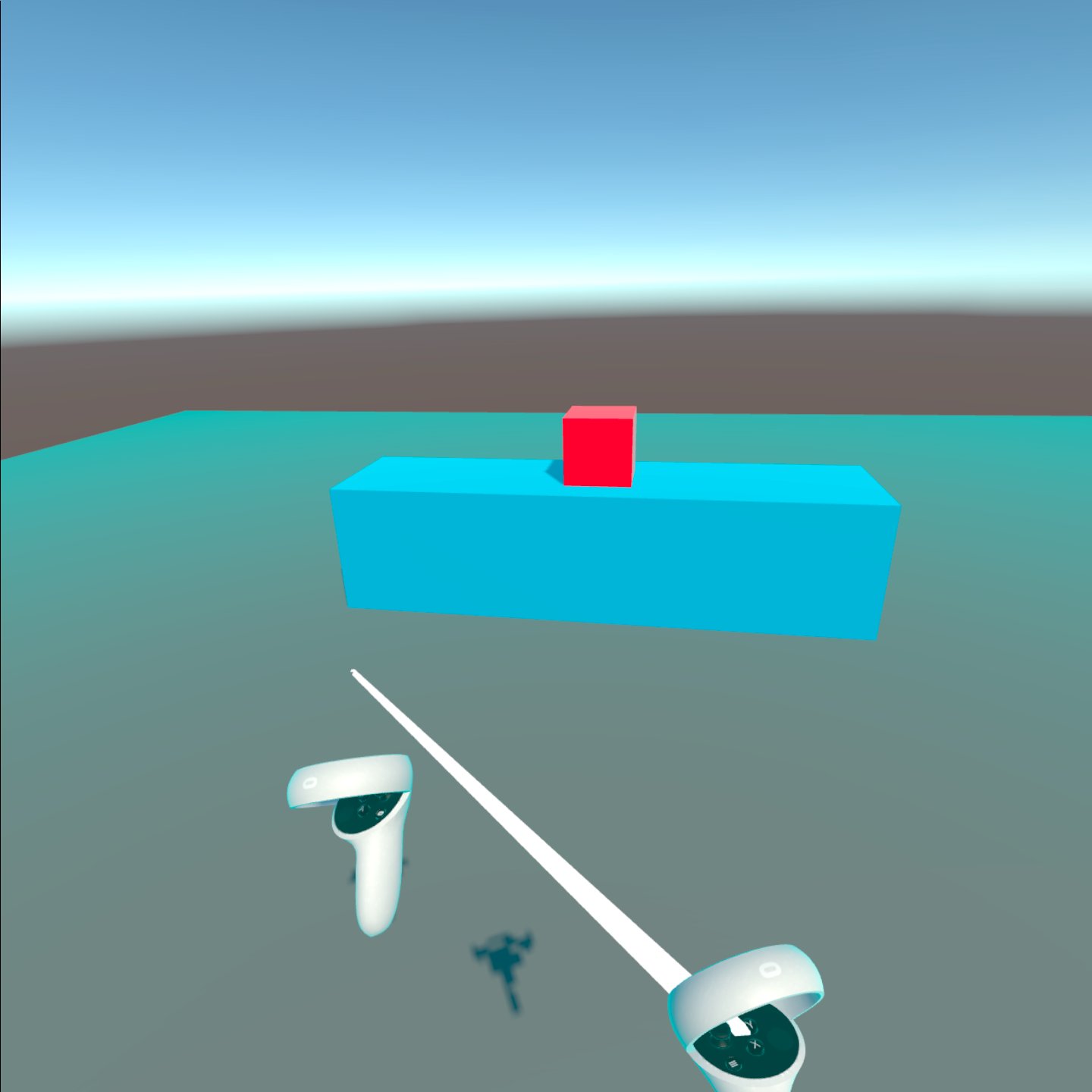

The APK is installed on the Quest2. You should be able to see the Quest2 controllers tracked with a red line coming out from them. In the next part we will see how to use the controller to interact with the object in the scene.

To interact with the virtual environment, we need to attach the interactable components of the XR Interaction Toolkit to the digital objects and to the controllers themselves. Both controllers of the XR Rig prefab have already a XR Ray Interactor component attached (the red line). We are going to transform the Right controller in a direct interaction control to grab the digital objects in the scene.

Grabbable object

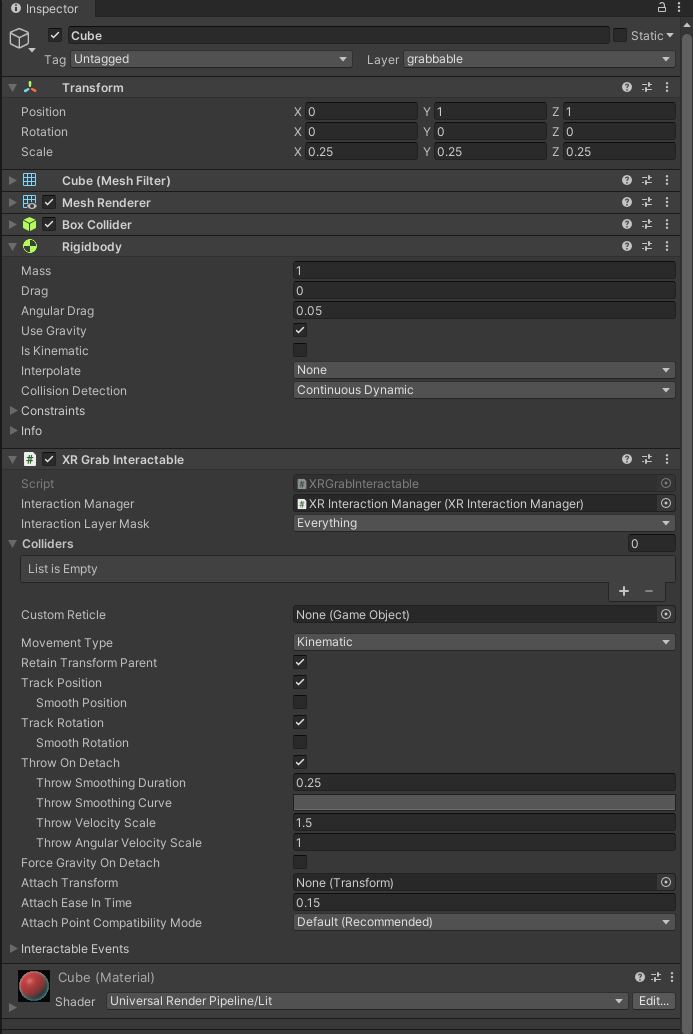

Create two new GameObjects cubes in the scene with the following parameters and name:

Create a different materials for each of them.

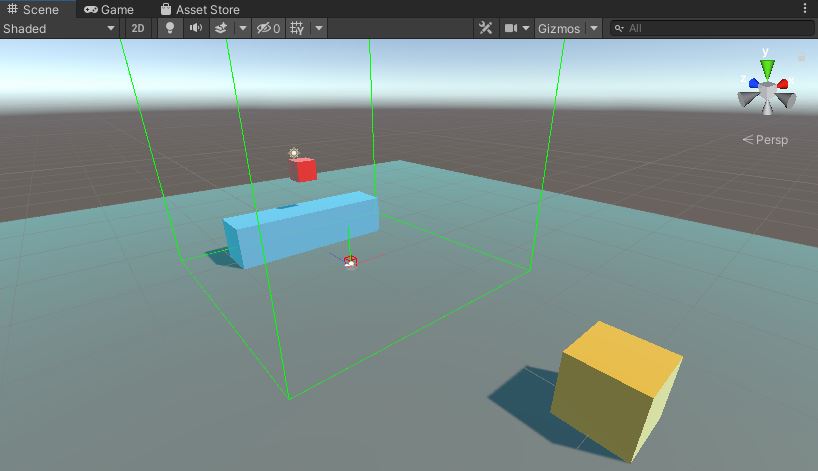

Table and Podium

Build the current scene to test the environment. It is now possible to interact with the red cube: with the right hand by touching it and pressing the grip button on the side of the controller; with the left controller by pointing at the cube and pressing and holding the grip button.

Create a new GameObject XR -> Locomotion System and add a new GameObject to the scene XR -> Teleportation Area in position (0,0,0). To avoiding the overlapping, we can now delete, or disable, the Plane create at the beginning of the workshop.

The teleportation system is already working, however, the default straight line render and the key behaviour are not the most effective solutions. Moreover, we want to use both hands to teleport and interact with the objects.

Teleporting default

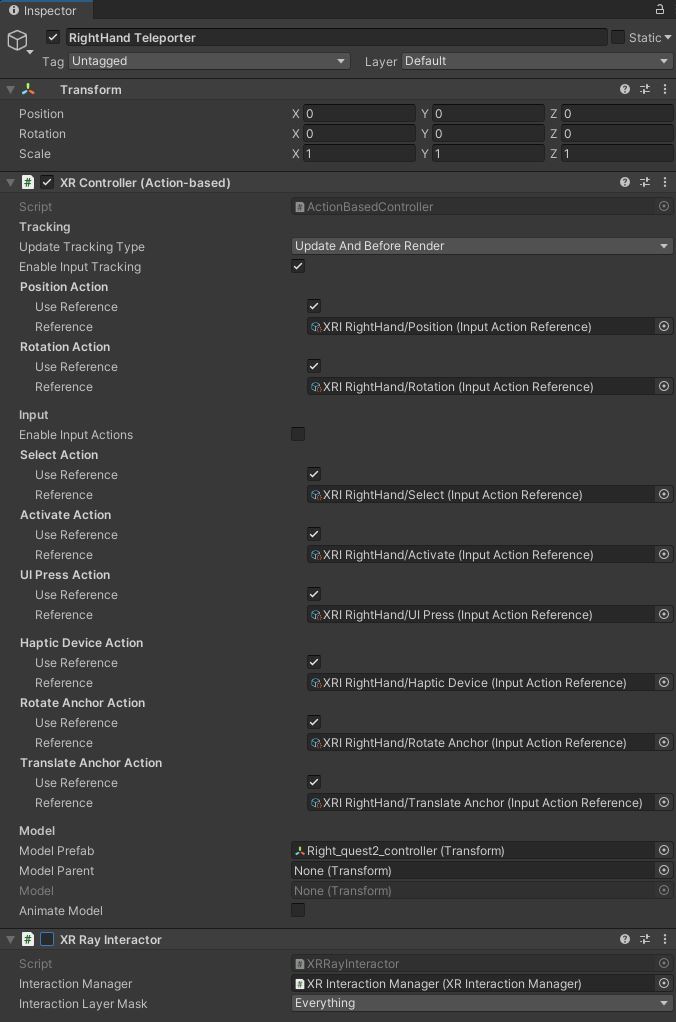

We are going to create two new parent GameObjects for both hands and, for each of them, we are going to add a grab controller and a teleport controller:

Teleport actions

The XR Rig should have this structure now:

Teleport actions

Create a new C# script TeleportationManager :

using UnityEngine;
using UnityEngine.InputSystem;
using UnityEngine.Events;

public class TeleportationManager : MonoBehaviour
{
    public GameObject baseController; //the Right / Left Hand Controller GameObject
    public GameObject teleportationController; //the Right / Left Teleport Controller GameObject
    public InputActionReference teleportActivationReference; //The `XRI RightHand/Teleport Mode Activate` / `XRI LeftHand/Teleport Mode Activate`

    public UnityEvent onTeleportationActive;
    public UnityEvent onTeleportationCancel;

    private void Start()
    {
        teleportActivationReference.action.performed += TeleportModeActivate;
        teleportActivationReference.action.canceled += TeleportModeCancel;
    }

    private void TeleportModeCancel(InputAction.CallbackContext context) => Invoke("DeactivateTeleporter", 0.1f);

    void DeactivateTeleporter() => onTeleportationCancel.Invoke();

    private void TeleportModeActivate(InputAction.CallbackContext context) => onTeleportationActive.Invoke();

}

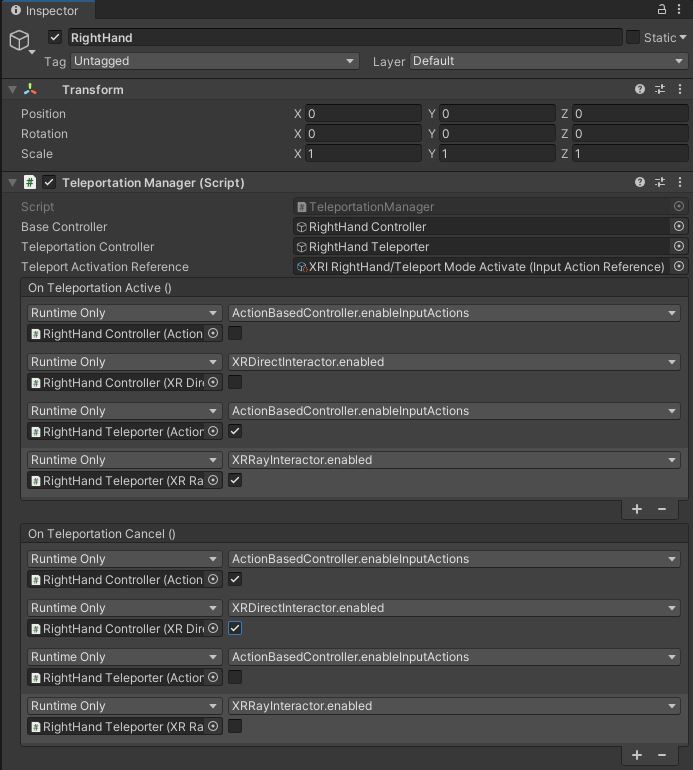

Attach the script to the RightHand GameObject (it will be attached also to the LeftHand GameObject) with the following values for the public fields:

To switch between the main controller and the teleportation one, add four entries for each OnTeleportationActive and OnTeleportationCancel.

On the OnTeleportationActive add:

On the OnTeleportationCancel the values will be inversed:

Teleport Manager

In the XR Ray Interactor of the RightHand Controller change the Line Type to Bezier Curve.

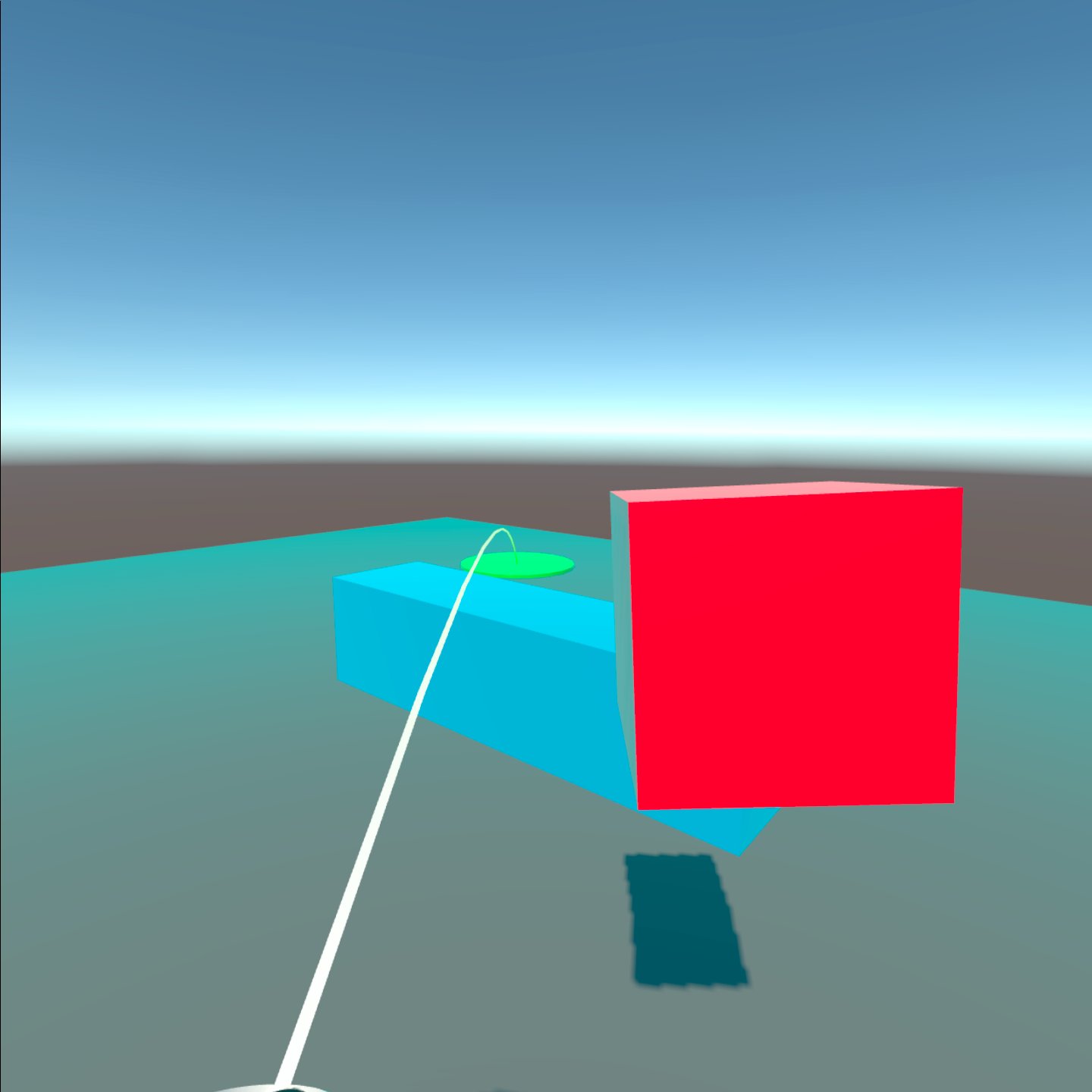

Screenshot Oculus Final teleport

Using the XR Interaction Toolkit it is possible to provide custom functions to interact with the scene. In this last part of the VR workshop we will link a virtual object with a MQTT broker to publish a message when the red cube is place to the podium.

Download the M2MQTT repository and copy the folders M2Mqtt and M2MqttUnity in the Assets folder of the Unity project.

Create a new C# script mqttReceiver:

/*
The MIT License (MIT)

Copyright (c) 2018 Giovanni Paolo Vigano'

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
*/

using System.Collections.Generic;
using UnityEngine;
using M2MqttUnity;
using uPLibrary.Networking.M2Mqtt.Messages;

public class mqttReceiver : M2MqttUnityClient
{
    [Header("MQTT topics")]
    [Tooltip("Set the topic to subscribe. !!!ATTENTION!!! multi-level wildcard # subscribes to all topics")]
    public string topicSubscribe = "#"; // topic to subscribe. !!! The multi-level wildcard # is used to subscribe to all the topics. Attention i if #, subscribe to all topics. Attention if MQTT is on data plan
    [Tooltip("Set the topic to publish (optional)")]
    public string topicPublish = ""; // topic to publish
    public string messagePublish = ""; // topic to publish

    [Tooltip("Set this to true to perform a testing cycle automatically on startup")]
    public bool autoTest = false;

    //using C# Property GET/SET and event listener to reduce Update overhead in the controlled objects
    private string m_msg;
    public string msg
    {
        get
        {
            return m_msg;
        }
        set
        {
            if (m_msg == value) return;
            m_msg = value;
            if (OnMessageArrived != null)
            {
                OnMessageArrived(m_msg);
            }
        }
    }
    public event OnMessageArrivedDelegate OnMessageArrived;
    public delegate void OnMessageArrivedDelegate(string newMsg);

    //using C# Property GET/SET and event listener to expose the connection status
    private bool m_isConnected;
    public bool isConnected
    {
        get
        {
            return m_isConnected;
        }
        set
        {
            if (m_isConnected == value) return;
            m_isConnected = value;
            if (OnConnectionSucceeded != null)
            {
                OnConnectionSucceeded(isConnected);
            }
        }
    }
    public event OnConnectionSucceededDelegate OnConnectionSucceeded;
    public delegate void OnConnectionSucceededDelegate(bool isConnected);

    // a list to store the messages
    private List<string> eventMessages = new List<string>();

    public void Publish()
    {
        client.Publish(topicPublish, System.Text.Encoding.UTF8.GetBytes(messagePublish), MqttMsgBase.QOS_LEVEL_EXACTLY_ONCE, false);
        Debug.Log("Message published");
    }
    public void SetEncrypted(bool isEncrypted) => this.isEncrypted = isEncrypted;
    protected override void OnConnecting() => base.OnConnecting();

    protected override void OnConnected()
    {
        base.OnConnected();
        isConnected = true;
        if (autoTest) { Publish(); }
    }

    protected override void OnConnectionFailed(string errorMessage)
    {
        Debug.Log("CONNECTION FAILED! " + errorMessage);
    }

    protected override void OnDisconnected()
    {
        Debug.Log("Disconnected.");
        isConnected = false;
    }
    protected override void OnConnectionLost() => Debug.Log("CONNECTION LOST!");
    protected override void SubscribeTopics() => client.Subscribe(new string[] { topicSubscribe }, new byte[] { MqttMsgBase.QOS_LEVEL_EXACTLY_ONCE });
    protected override void UnsubscribeTopics() => client.Unsubscribe(new string[] { topicSubscribe });
    protected override void Start() => base.Start();
    protected override void DecodeMessage(string topic, byte[] message)
    {
        //The message is decoded
        msg = System.Text.Encoding.UTF8.GetString(message);

        Debug.Log("Received: " + msg);

        StoreMessage(msg);
        if (topic == topicSubscribe)
        {
            if (autoTest)
            {
                autoTest = false;
                Disconnect();
            }
        }
    }
    private void StoreMessage(string eventMsg)
    {
        if (eventMessages.Count > 50)
        {
            eventMessages.Clear();
        }
        eventMessages.Add(eventMsg);
    }

    protected override void Update() => base.Update(); // call ProcessMqttEvents()

    private void OnDestroy() => Disconnect();
    private void OnValidate()
    {
        if (autoTest)
        {
            autoConnect = true;
        }
    }
}

Create a new C# script mqttPublisher

using UnityEngine;
[RequireComponent(typeof(mqttReceiver))]
public class mqttPublisher : MonoBehaviour
{
    public mqttReceiver _eventSender;
    public string messagePublish = "";

    void Start()
    {
        _eventSender = this.gameObject.GetComponent<mqttReceiver>();

        _eventSender.OnConnectionSucceeded += OnConnectionSucceededHandler;
    }

    private void OnConnectionSucceededHandler(bool connected)
    {
        if (!connected) //publish if connected
            return;
//if the messagePublish is null, use the one of the MQTTReceiver
        if (messagePublish.Length > 0)
        { _eventSender.messagePublish = messagePublish; }

        _eventSender.Publish();
        Debug.Log("Publish" + messagePublish);
    }
}

Create a new C# script mqttController:

using UnityEngine;

[RequireComponent(typeof(mqttReceiver))]
public class mqttController : MonoBehaviour
{
    public GameObject objectToControl;
    public mqttReceiver _eventSender;
    void Start()
    {
        _eventSender = this.gameObject.GetComponent<mqttReceiver>();
        _eventSender.OnMessageArrived += OnMessageArrivedHandler;
    }

    private void OnMessageArrivedHandler(string newMsg)
    {
        Debug.Log("Event Fired. The message is = " + newMsg);
    }
}

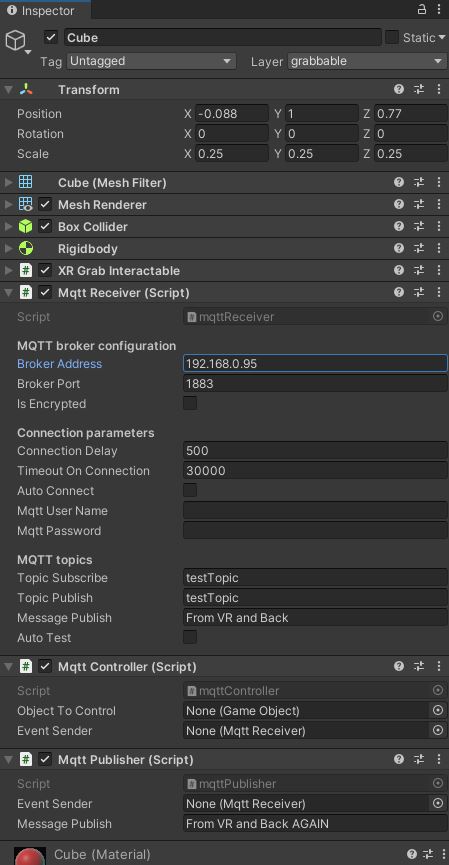

Attach the three scripts to the Red Cube GameObject:

Teleport Manager

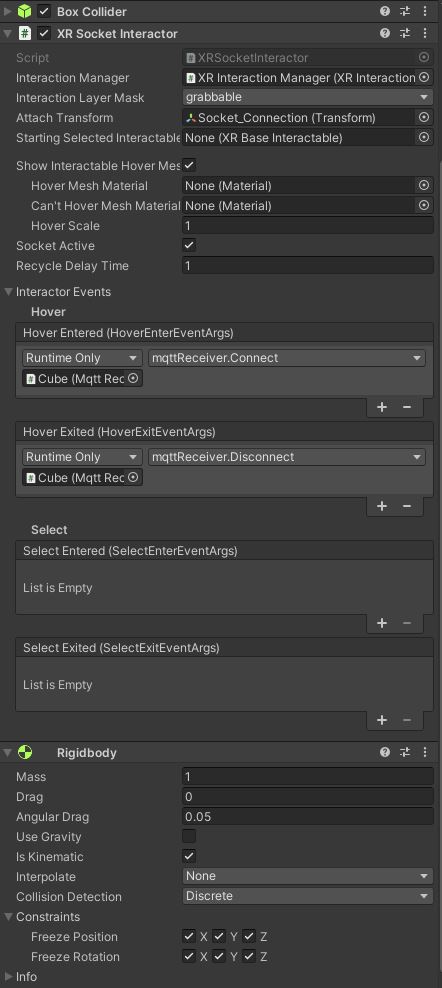

Select the Podium GameObject from the Hierarchy and add a XRSocketInteractor component. This component will link the Red Cube GameObject and trigger both connection and publishing to the MQTT Broker:

Finally, set the Box Collider of the GameObject IsTrigger and add a RigidBodyKinematic and freeze X, Y and Z of both position and rotation

Enable VR support

Build and Run the project, it will be now possible to grab the RedCube, teleport to the Podium and trigger the MQTT connection by adding the RedCube to the Podium.
